How to Run a Power Analysis
This guide explains how to use GeoSC to evaluate test strength before running an experiment.
Running Power Analysis via CLI
Use the power command to simulate experiments with known treatment effects and calculate the statistical power:
Packaged-install example:
Source-checkout example with the shipped demo config:
Key Flags
--config: Path to the YAML configuration file.--use-gpu: (Optional) Accelerates computation using compatible GPUs.--jobs -1: Uses all available CPU cores for parallel processing.
Built wheel and sdist installs do not include data-config/, so packaged users
should provide their own YAML path.
Expected Outputs
power_analysis_results.csv: Detailed grid of simulated lifts, sample sizes, power, Monte Carlo uncertainty, simulation failures, seed, DGP rank, feasible placebo support, and SparseSC/backend parameters.power_curves.png: Visualization of the power curve across different minimal detectable effects (MDE).
Rows with valid: false exceeded the configured simulation failure tolerance or
had no successful simulations. Do not use those rows for feasibility decisions.
Seeded runs use CPU generation for reproducible simulation draws, so the shipped
demo config sets use_gpu: false.
Design Validity and Plot Filtering
The power calculator fails fast at construction with a ValueError if the
design has no treatment units, or if there are fewer control units than
treatment units. In that case placebo inference is infeasible and no power
analysis is run.
plot_power_curves filters rows where valid is false out of the decision
plots (logging the number of excluded rows), and skips plot creation entirely
if no valid rows remain. Inspect power_analysis_results.csv directly to see
why rows were marked invalid (high failure_rate, zero n_successful, etc.).
Reproducibility
When random_seed is set, repeated runs of the same config produce identical
power_analysis_results.csv content (excluding timestamp/path metadata), in
both sequential and parallel modes. This is covered by both unit and CLI
integration tests.

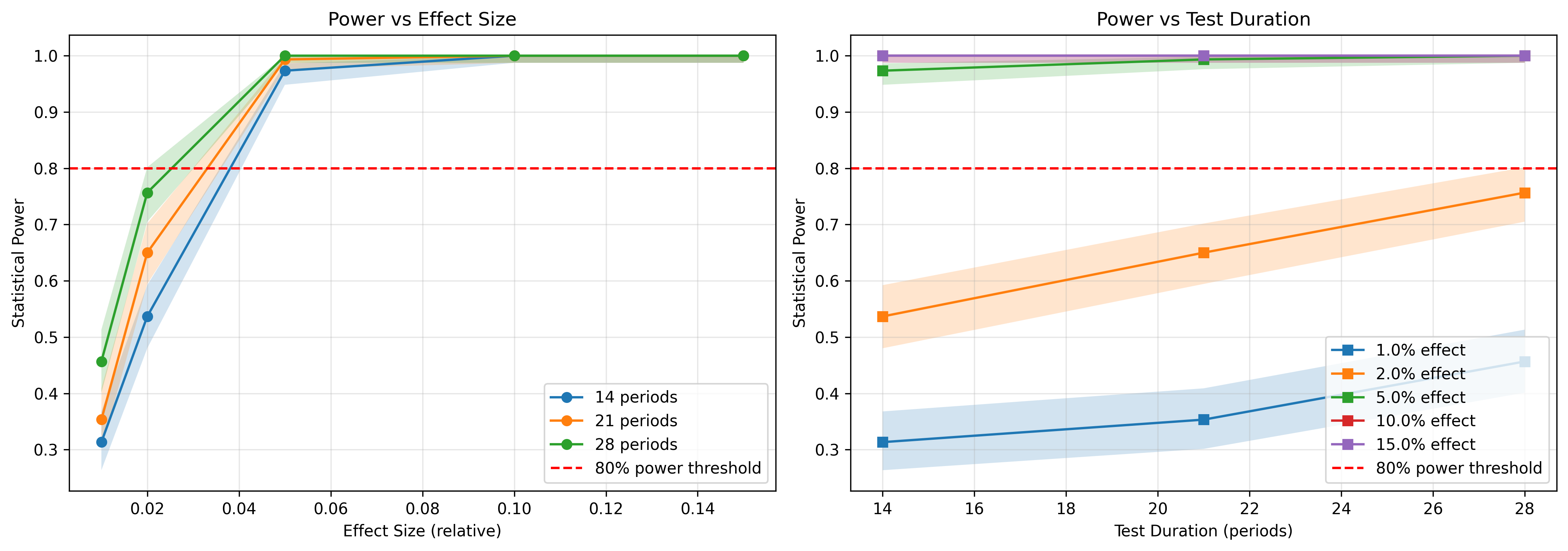

Example Plot
The source-checkout demo workflow ships a representative power-curve output:
